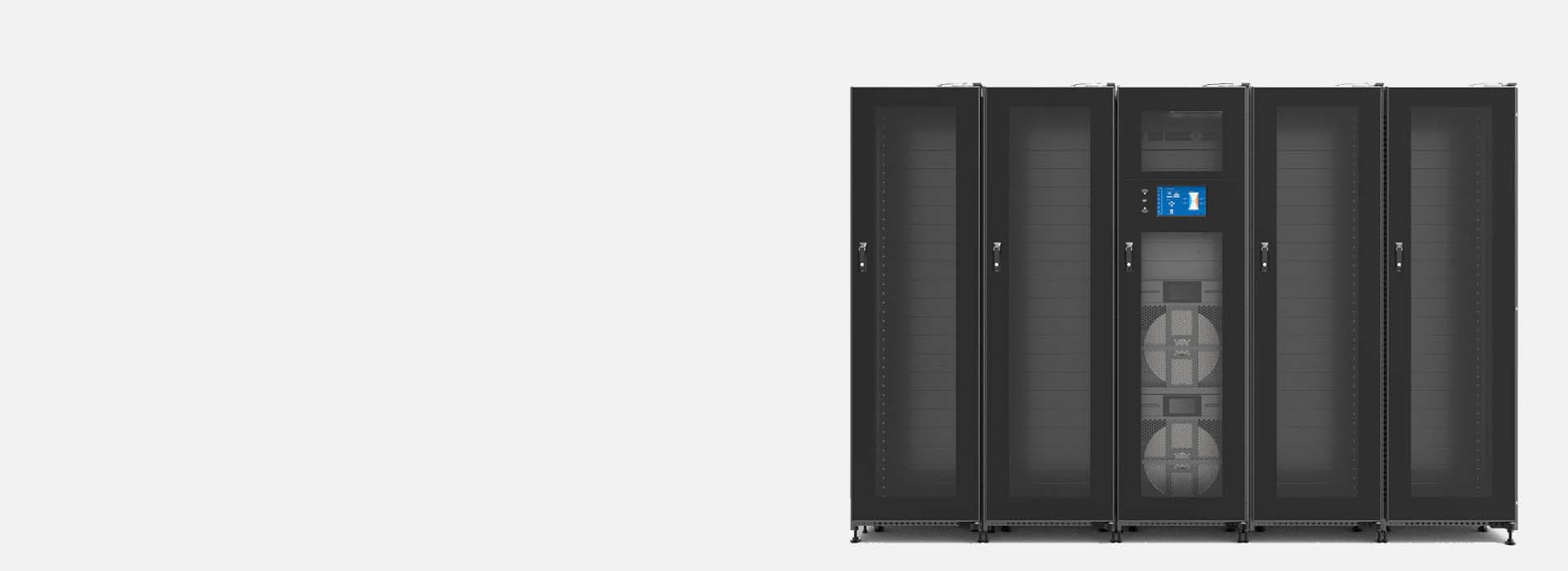

A solution specifically for the construction of small and micro data centers. All subsystems of the data center are integrated in the cabinet, which integrates power distribution, UPS, monitoring, cooling and cabinet systems. Among them, the integrated infrastructure cabinet integrates power distribution, UPS, rack air conditioning, and monitoring modules, which greatly saves room space. IT cabinets are equipped with infrastructure such as flexible line systems and management systems on both sides of the integrated infrastructure cabinet, with a compact layout and flexible expansion capacity.
The cooling and electric control integration is pre-integrated in a cabinet, and the on-site installation only needs to be simple and the cabinet is installed, and the construction time is only 4 hours.
Remote monitoring, centralized monitoring of multi-module unified network management, unattended operation
Rack air conditioning, saving at least one cabinet installation space
DC variable frequency cooling, optional hot and cold channels, PUE as low as 1.37
10% load in the equipment room can be dehumidified lightly to avoid the risk of condensation in the equipment room
Real-time monitoring of battery voltage, internal resistance and temperature, intelligent shutdown for overheating to prevent fire
产品特性 | |
---|---|
机柜 | 3套标准600*1200*42U机柜,可提供108U自主安装空间 5套标准600*1200*42U机柜,可提供182U自主安装空间 |
精密空调 | 1套8kW精密空调 1套15kW精密空调 |
UPS | 1套10KVA机架式UPS |
电池包 | 1套备电时间30min |
PDU | 3套单相12路10A、4路16A输出 5套单相12路10A、4路16A输出 |
配电模块 | 1套机架式模块化配电单元,内置智能电表,MODBUS协议,UPS旁路互锁功能 |
监控模块 | 1套含监控单元、消防单元、烟雾传感器、温湿度传感器、水浸检测器 |
报警形式 | 声光报警和短信报警 |
尺寸规格 | 1800×1200x2000mm 3000×1200X2000mm |
